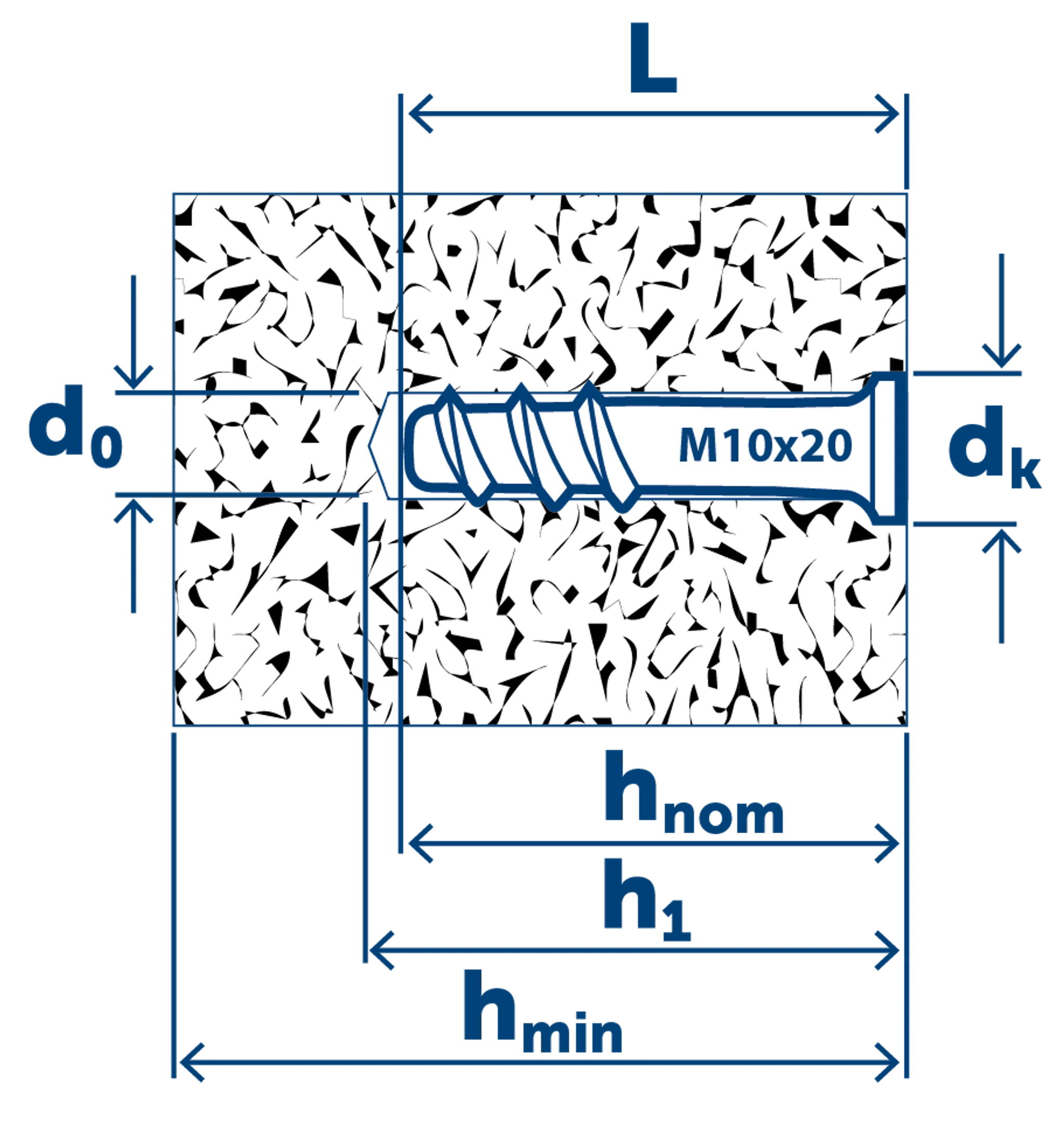

Asphalt anchor 16x100 (M10x20)

Simple solution - directly into asphalt

• Asphalt anchor with zinc flake coating can be easily installed in asphalt using Multifix SE1000 (art. no. 9571001000) or ITH 420 HY Hybrid (art. no. 9640072964).
• Anchor has M10x20 mm internal thread.
• A tightly sealed borehole prevents water ingress and frost damage during the winter.
• For the installation, use installation tool art. no. 9640075192.
• Installation: 1) Drill the hole 2) Thoroughly clean the drill hole 3) Inject Multifix SE1000 or Hybrid into the hole 4) Screw in the asphalt screw using the asphalt anchor installation tool SW12 5) Once the embedment depth is reached, ensure that resin emerges at the asphalt surface 6) The fixture can be installed immediately after installation. The final curing time depends on the properties of the injection resin used.
